This high-performance 20kWh (51.2V) Lithium Iron Phosphate (LiFePO4) battery delivers reliable, long-lasting energy storage. Engineered for safety and durability, it features the inherent stability and thermal safety of LiFePO4 chemistry. With a typical lifespan exceeding 2000 cycles, it offers excellent value and low total cost of ownership.
Its standard 51.2V nominal voltage ensures seamless integration with compatible inverters and energy management systems. Ideal for residential and light commercial solar energy storage, backup power systems, and off-grid applications.
Key Features :
♦Wall type: Easy connection, support max 8 set parallel connection.
♦Longer Cycle Life : Offers up to 5000 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity♦Wider Temperature Range : -20ºC~60ºC
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes
Product Parameters
| Electrical Characteristics | Nominal Voltage | 51.2 |
| Nominal Capacity | 400Ah |
| Energy | 20KWH |
| Internal Resistance(AC) | ≤20mΩ |
| Cycle Life | >5000 cycles @ 1C 80% DOD |
| Months Self Discharge | <3%<> |
| Efficiency of Charge | 100% @0.5C |
| Efficiency of Discharge | 96~99% @1C |
| Standard Charge | Charge Voltage | 58.4±0.2V |
| Charge Current | 200A |
| Max. Charge Current | 200A |
| Charge Cut-off Voltage | 62.4±0.2V |
| Standard Discharge | Continuous Current | 200A |
| Discharge Cut-off Voltage | 43.2V |
| Envitonmental | Charge Temperature | 0ºC to 55ºC (32F to 131F) @60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity |
| Storage Temperature | -20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity |
| IP Class | IP30 |
Q1:Are you a factory or trade company? We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements. Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
|
|

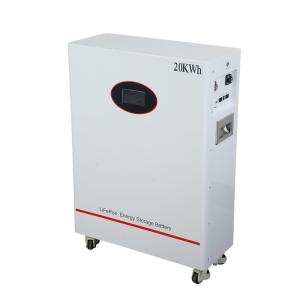

51.2V 400AH 20KWH lithium iron battery with 5 years warranty Images
|
